Premium Quattro For 6

Overview Specs

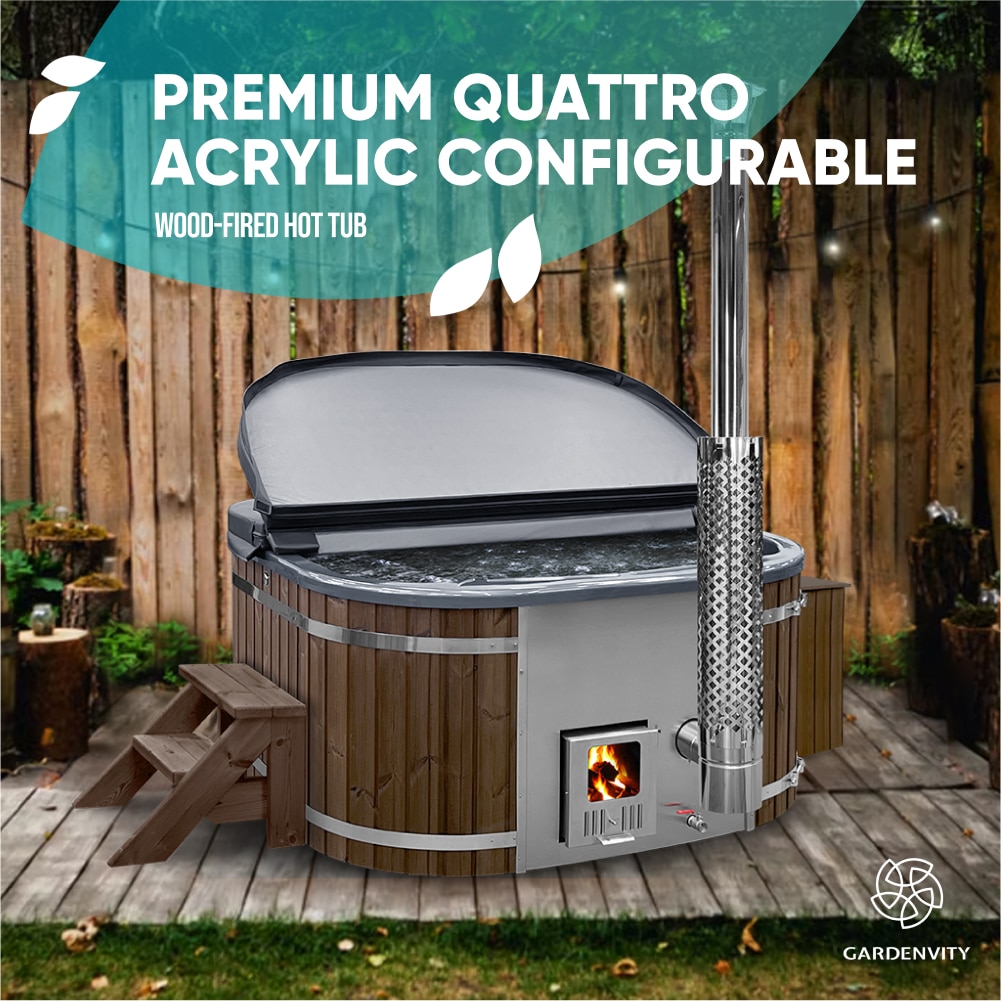

Gardenvity square wood fired hot tub with an integrated stove for 6 people and an acrylic liner

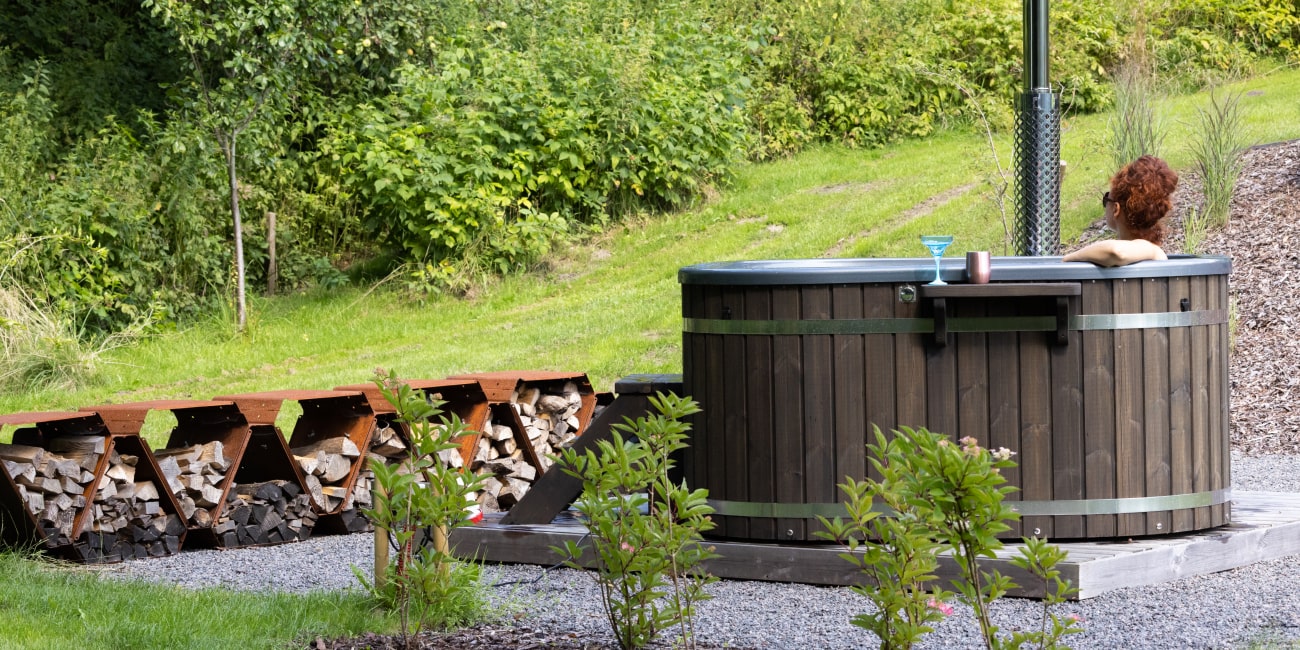

A square Gardenvity wood-fired hot tub placed in a private garden

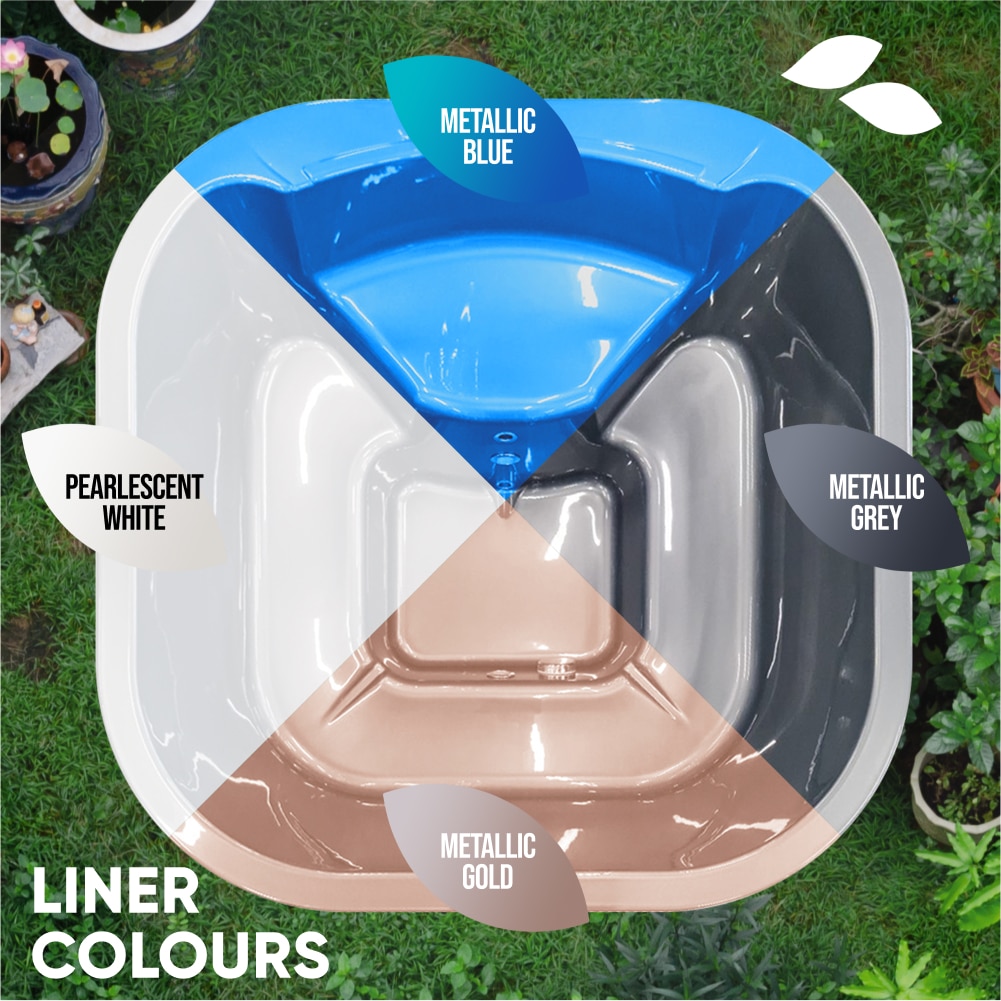

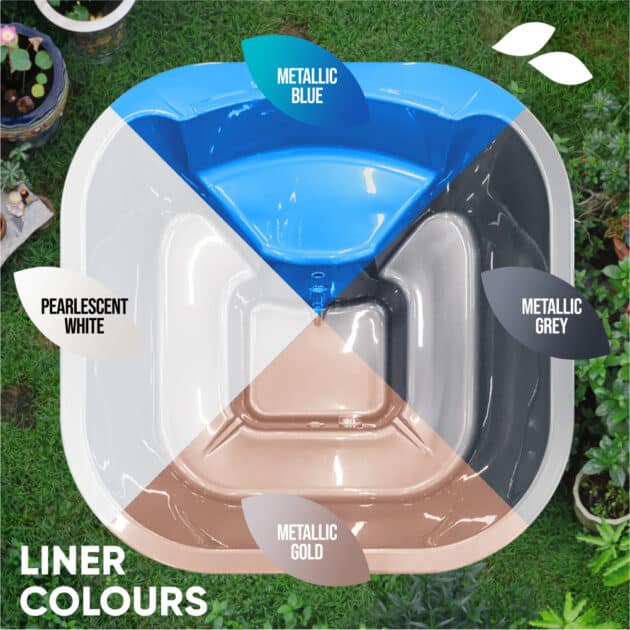

Four dense metallic colours available for the Gardenvity acrylic liner

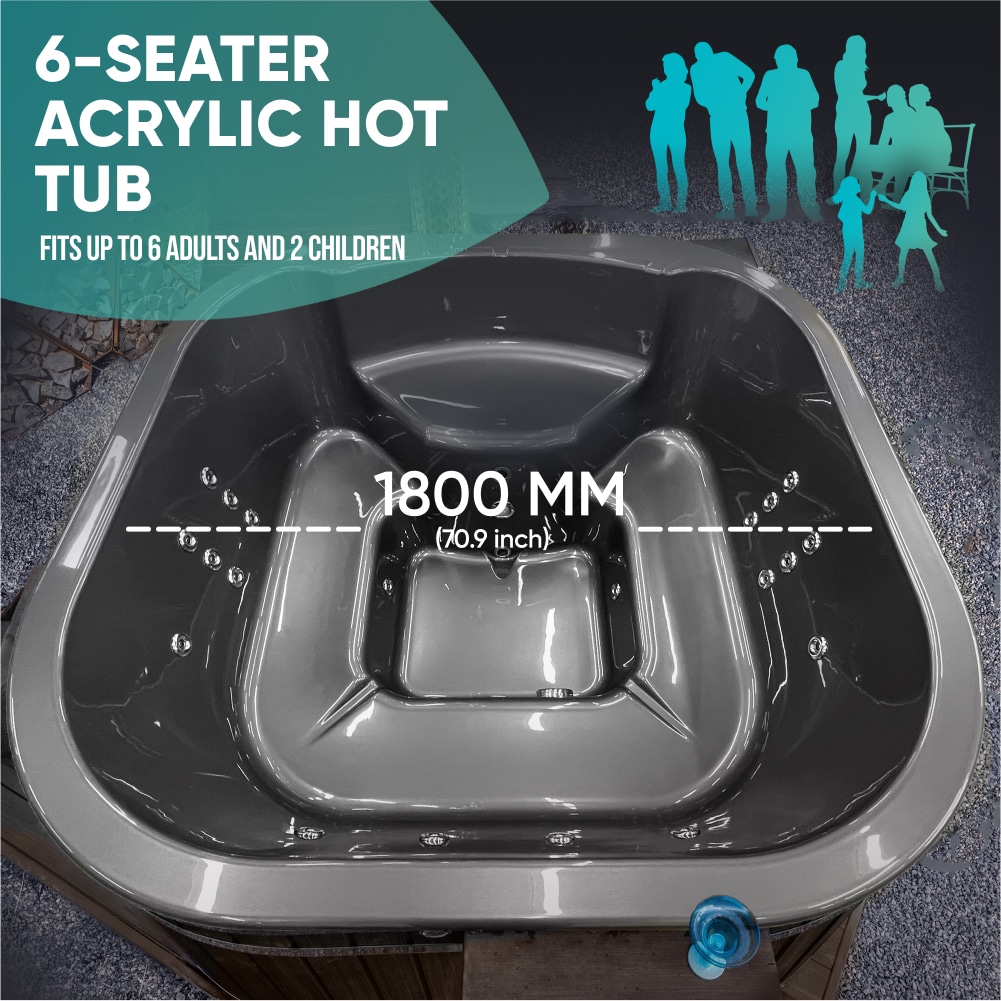

Square hot tub 180 cm wide, comfortable for 6 people

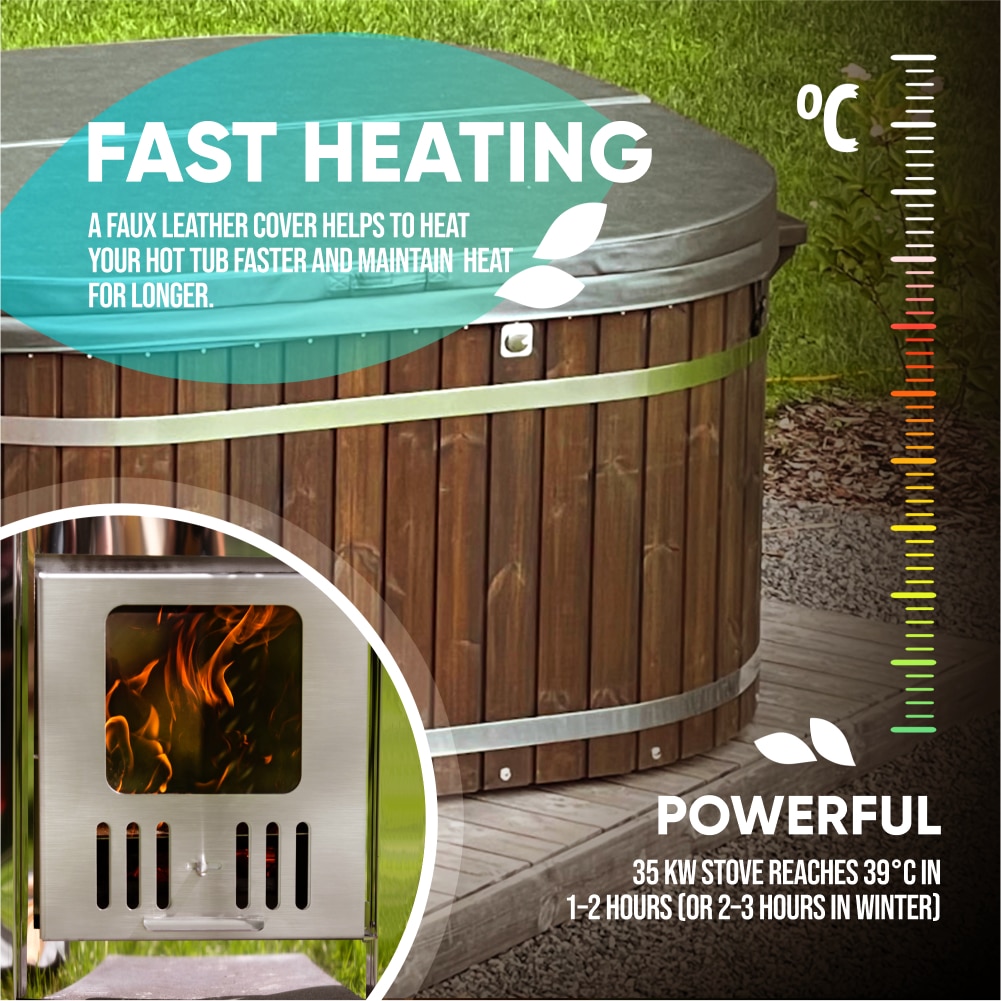

A powerful wood-fired stove to heat the water fast

Advantages of square wood fired hot tub's Scandinavian thermowood

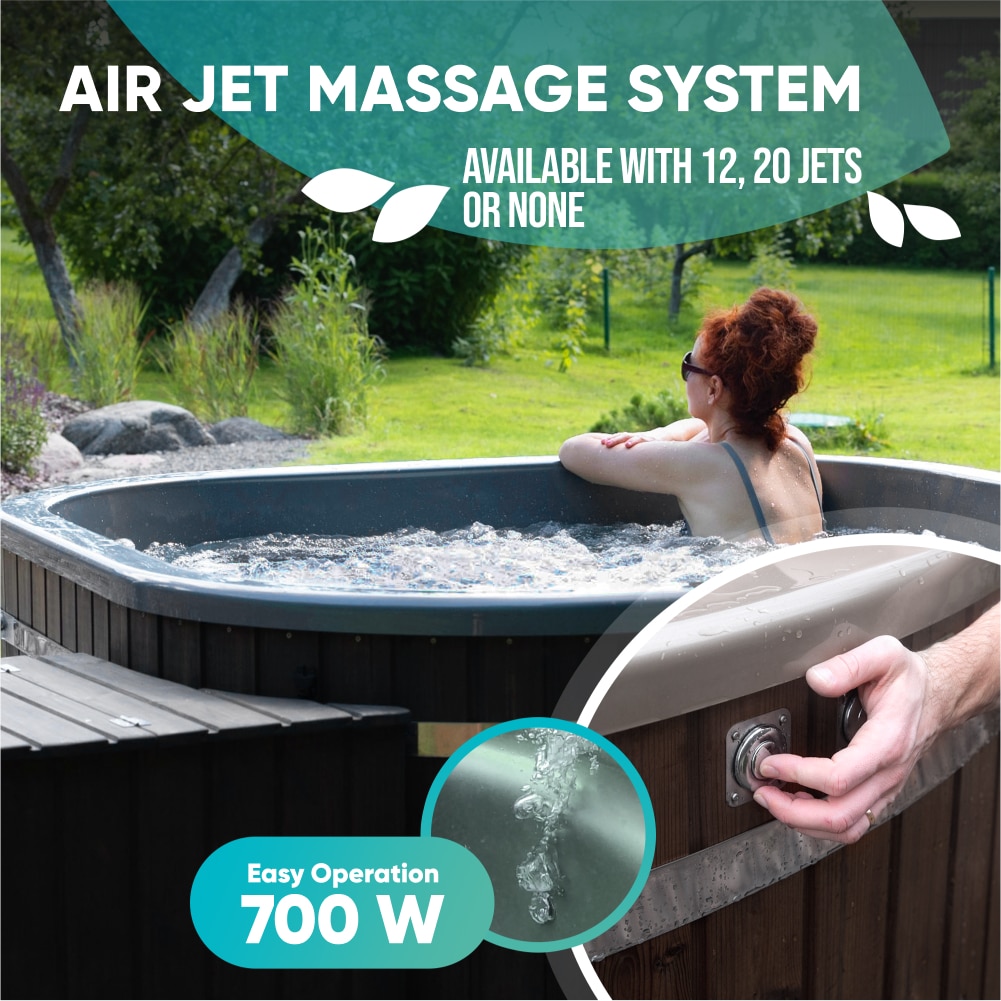

Air massage system with up to 20 jets, 700 W strong

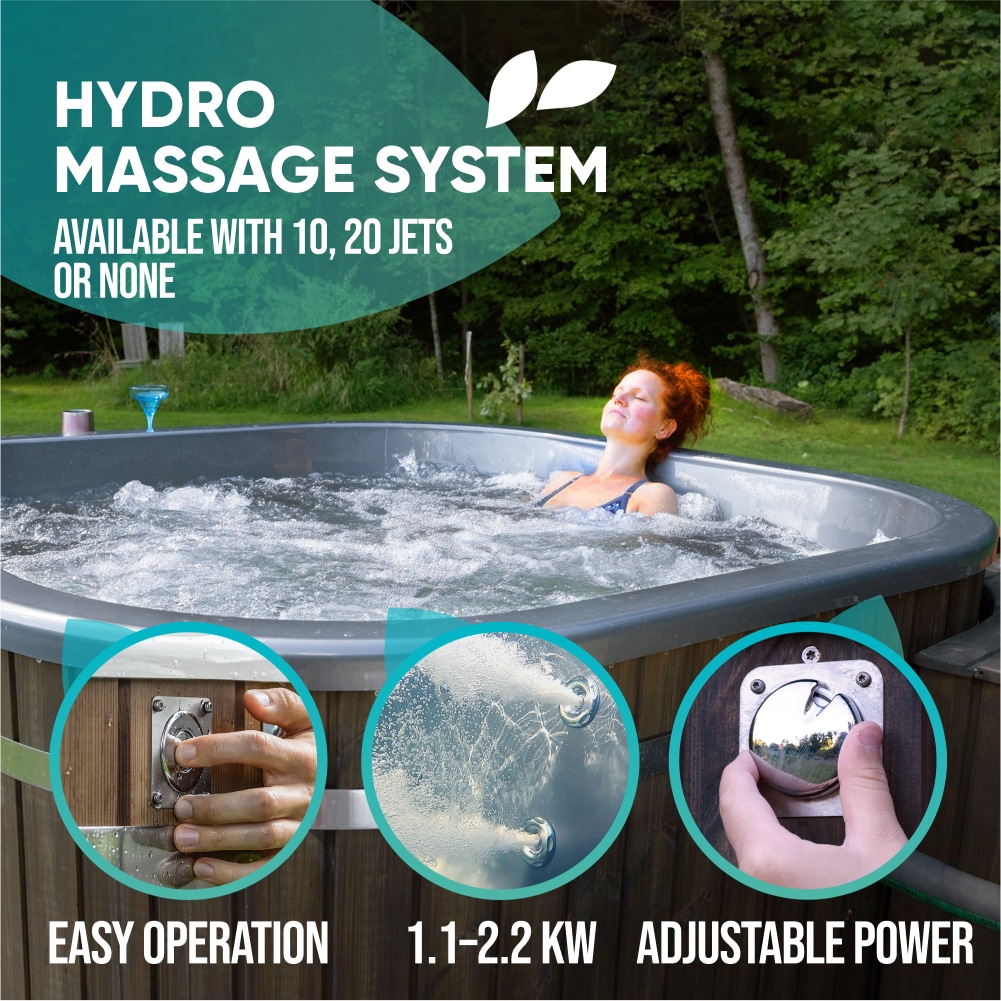

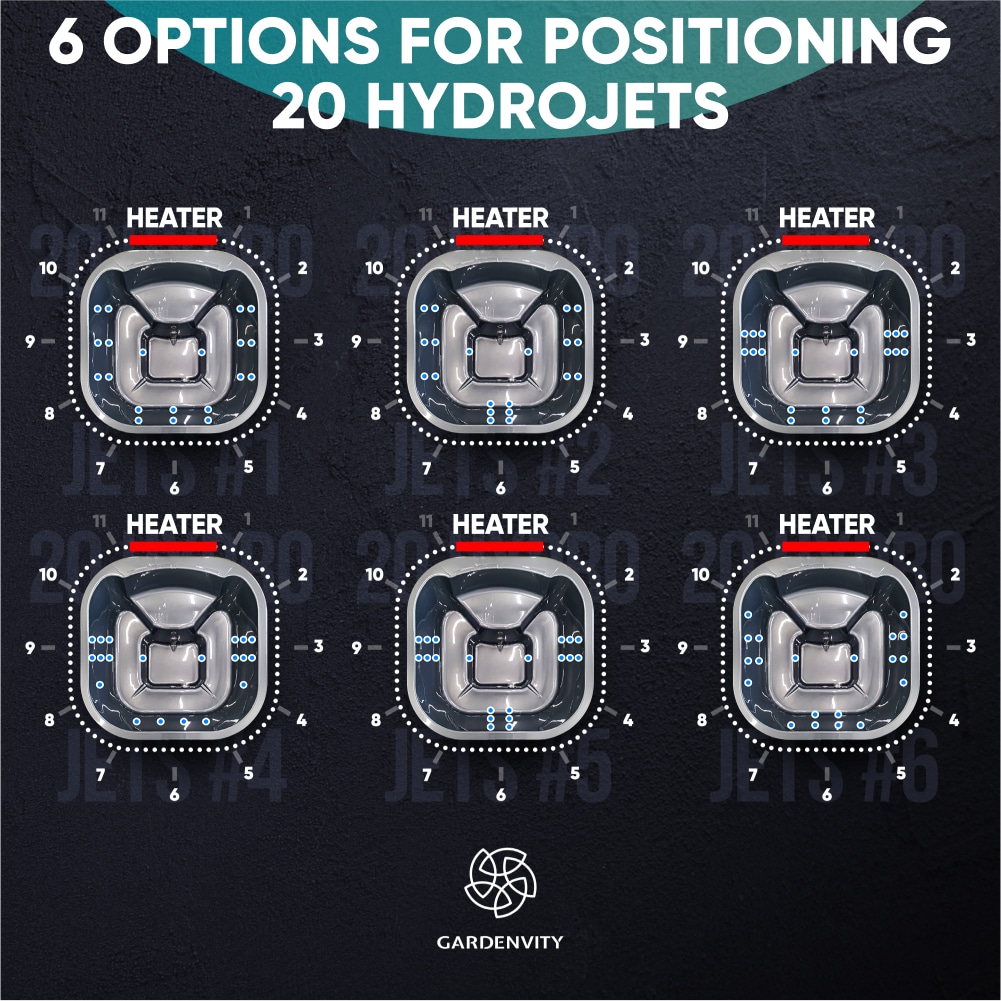

Hydromassage system with up to 20 jets, 1.1-2.2 kW strong

Premium Quattro | Acrylic liner, metallic colours | Integrated heater | For 6 people

Integrated heater, 180x180 cm internal dimensions, an elevated seat, and an acrylic liner, available in four metallic colours.

A wood-fired hot tub with an integrated stove offers modern aesthetics and optimal use of space. This model comes as close to the look and feel of an electric spa as it might – an elevated seat for smaller users like children and those who want to cool down.

This applies to all hot tubs in the Premium line:

QUICK HEATING: Heats in 1–2 hours in summer, 2-3 in winter.
EFFECTIVE HEAT RETENTION: If you bathe in the evening, you only need to warm the water up by a few degrees in the morning.

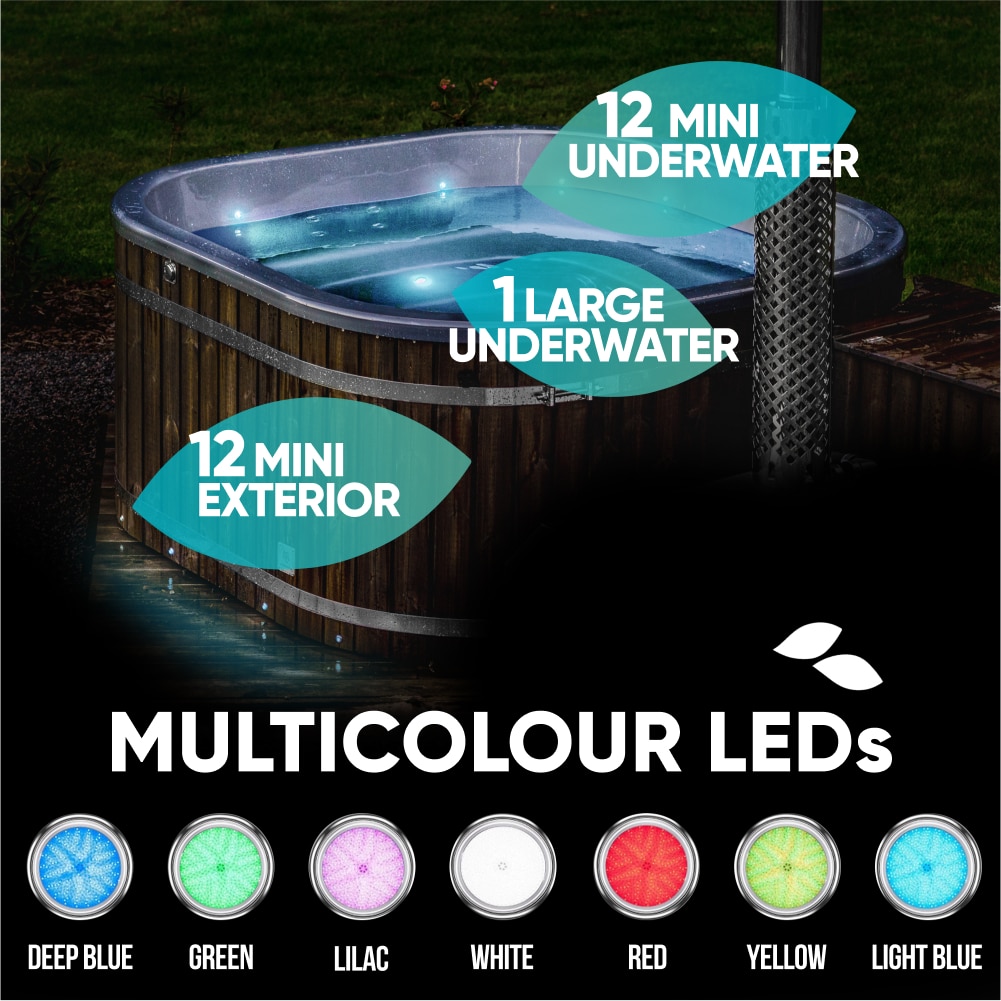

FLEXIBLE CONFIGURATION: Add everything that matters to you. You can choose between LED lighting inside and outside air and water massage. A sand filter and UV-C lamp ensure proper water quality.
WIDE SELECTION OF ACCESSORIES: Choose the right accessories for maximum comfort.
EASY TO ASSEMBLE: Comes pre-assembled so you can dip in only a few hours after delivery.

The all-inclusive package contains everything you will want and need for fast water heating and maintaining it toasty for a long time: acrylic liner with insulation, efficient stove, and insulated faux leather cover.

You want long-lasting, durable cladding for all weather conditions, so we included thermowood cladding and wood treatment.

We save you time by including practical parts in any package, such as essential chimney parts and accessories, classic stairs, high-flow drain taps, and brass hose fittings.

Start with a well-planned basic package, then add SPA elements and accessories according to your preferences.

From
£ 4,935

All-inclusive starter package

Configure Now

Shipping fee calculated at checkout based on postcode

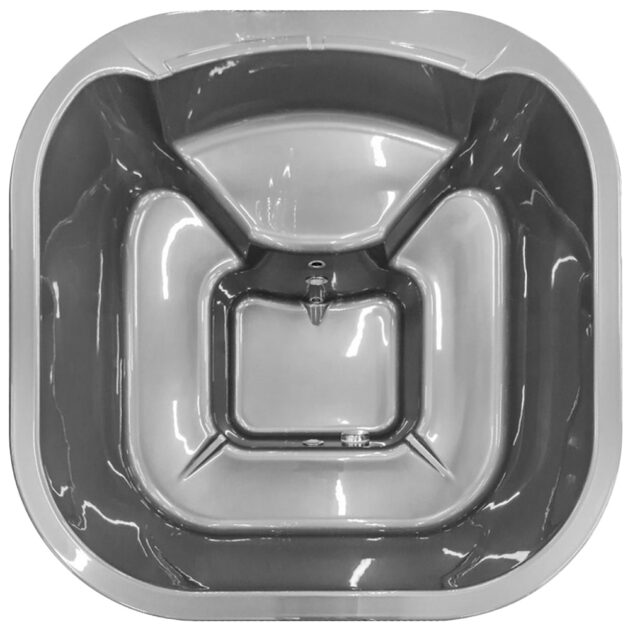

Premium quality acrylic liner

A quality liner is one of the key components of a wood-fired hot tub. That’s why we strive to use the finest acrylic resin and adhere to strict production standards.

Its shape ensures that the drainage is carried out correctly, down to the last drop, to prevent any proliferation of bacteria that would survive in puddles of stagnant water.

Superior quality acrylic resin, sourced from our trusted Austrian supplier, SENOPLAST Klepsch & Co. GmbH.

Four options of dense colours with a luxurious metallic finish, that will integrate perfectly into your garden.

Stainless steel stove, resistant to chemicals

A powerful wood-fired stove, which heats the water very quickly and allows you to safely use disinfectant products for clean water that lasts longer.

This stove is up to 5 times more economical than electric heaters for heating bath water

Choice between two qualities of steel: chlorine resistant (AISI 316) and salt resistant, or non-chlorine chemical resistant (AISI 304).

Robust chimney with spark guard and heat shield on all accessible parts to avoid accidental burns.

Product specifications

Product technical data

External dimensions (L x W x H): 2020 x 2020 x 1000 mm (79.6 x 79.6 x 39.4 in).
Internal dimensions (L x W x H): 1800 x 1800 x 880 mm (70.9 x 70.9 x 34.6 in).

Standard steps (L x W x H): 530 x 740 x 600 mm (20.9 x 29.1 x 23.6 in).
Curved steps (L x W x H): 970 x 540 x 580 mm (38.2 x 21.3 x 22.8 in).

Electricity supply

Power: 220-240 V, AC 50/60 Hz.
Max. electrical load up to 32 amps, depending on configuration:

20 HydroJets: 2.2 kW – 10 amps;

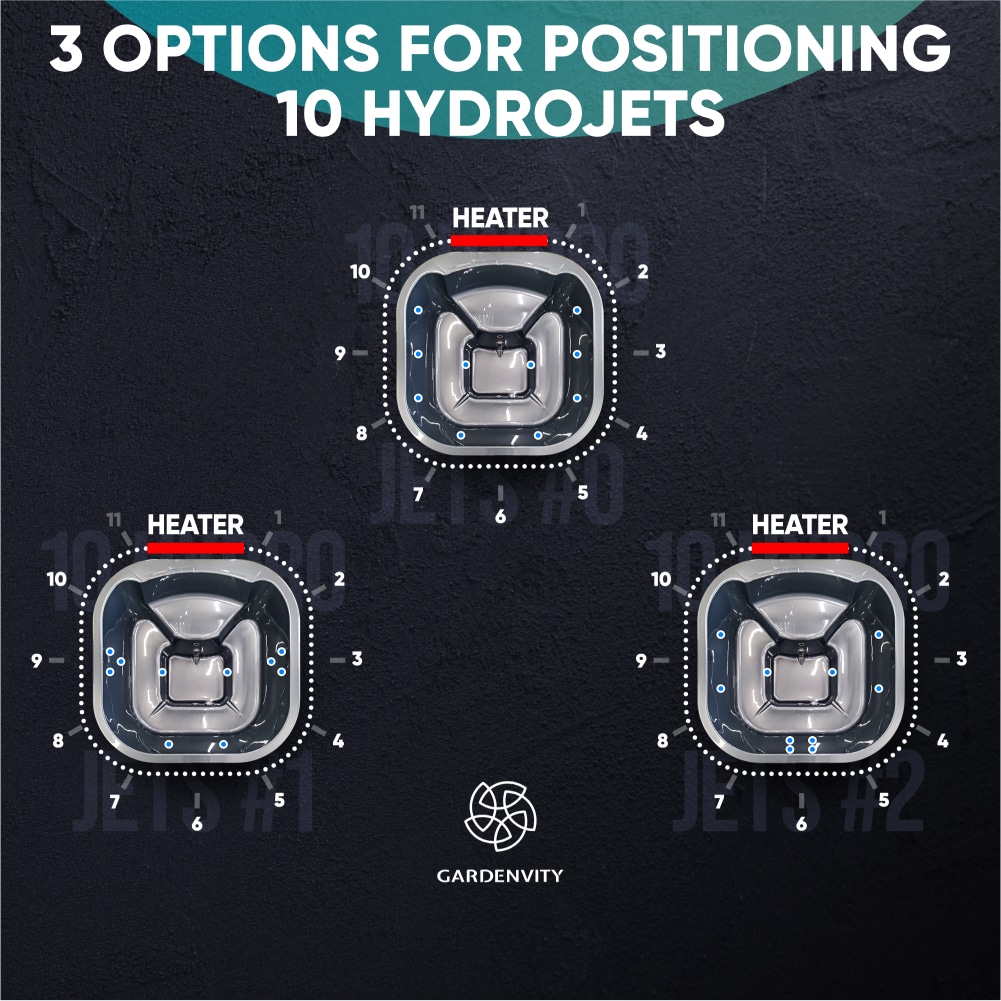

10 HydroJets: 1.1 kW – 5.8 amps;
AirJets: 0.7 kW – 3.3 amps;
Water filter: 0.25 kW – 1.6 amps;
UV-C lamp: 21 V – 0.1 amps;
Electric heater: 3 kW – 13.6 amps.

Water supply

Capacity: 1600-1800 L (352-396 gal).
Water drain valve diameter: 25.4 mm (1 in).

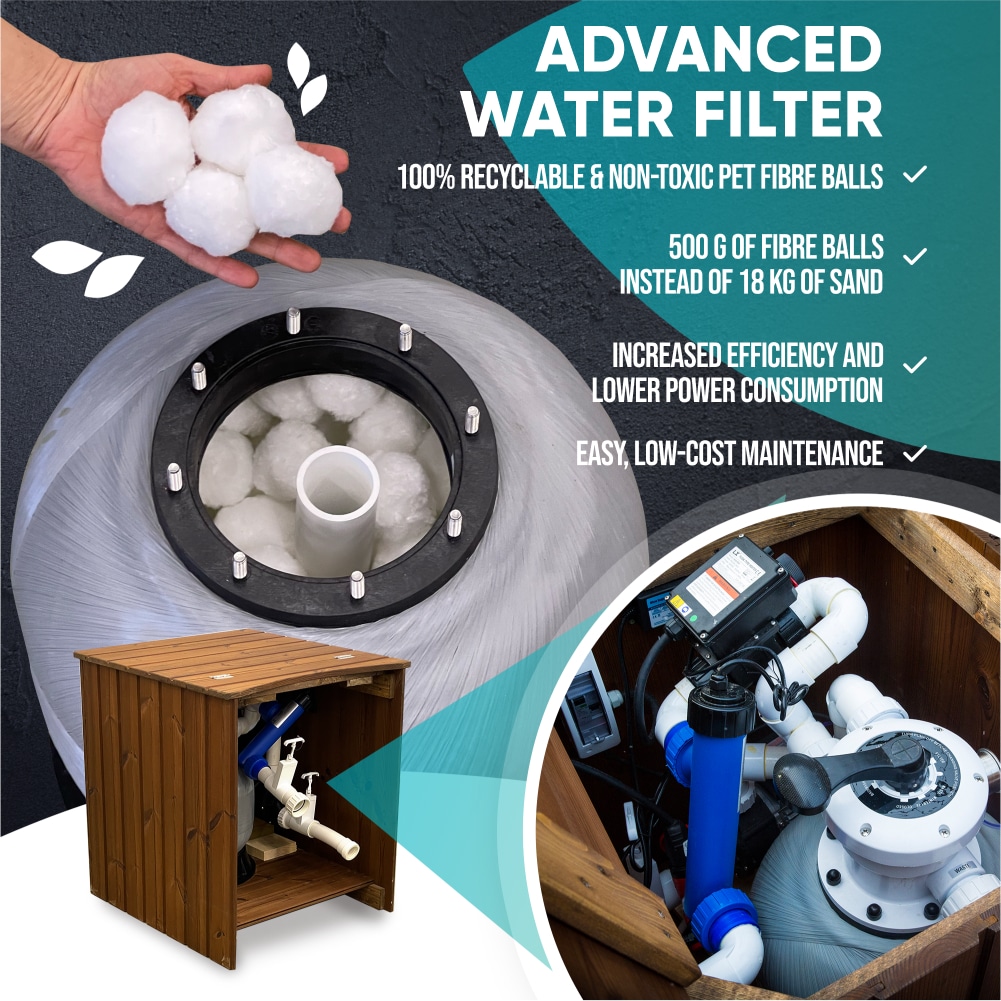

Water filter

Type: fiber-ball filtration system.
Power: 220-240V~, 50Hz, 0.25kW / 1.6 amps.
Capacity: 8000 liters/h.
Fiber media replacement: Bestway Flowclear Polysphere Filter Balls 500g 58475 or equivalent (DO NOT USE SAND).
ThermoWood case size (L x W x H): 700 x 760 x 950 mm.

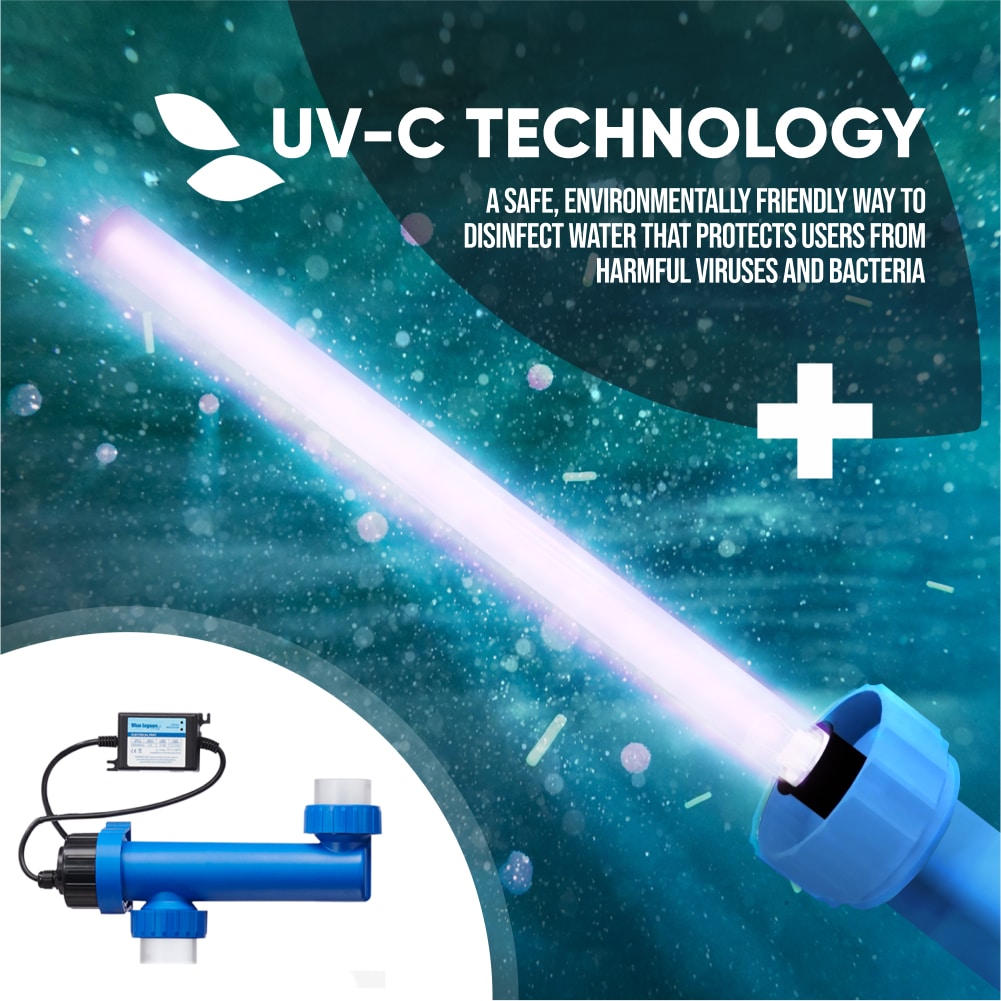

UV-C water purifier lamp

Power: 230 V AC, 21 W / 0.2 amps.
Lamp life: 9,000 hours.
Max. flow and pressure: 13000 l/h, 1 bar.
Max. temperature: 40 C.

Product base size

Minimum base size: 3000 x 2200 mm (118.1 x 86.6 in), with filter 3000 x 2500 mm (118.1 x 98.4 in).
Recommended base size: 3800 x 3800 mm (149.6 x 137.8 in), with filter: 3800 x 3800 mm (149.6 x 149.6 in).

Delivery-related technical data

Package type: 2 x euro pallets 1200 x 800 mm (47.2 x 31.5 in).
Package weight: 300 – 350 kg (661 – 772 lbs) depending on the choice of package and accessories.
Package dimensions (L x W x H) +-100 mm (3.9 in) on each dimension: 2150 x 1150 x 2250 mm (88.6 x 47.2 x 86.6 in). Filter box package: 750 x 770 x 950 mm (29.5 x 30.3 x 37.4 in).

Heater type and fuel

Main heater material: food grade 18/8 stainless steel AISI Grade 304 or 316.
Heater fuel: dry softwood or a mix of softwood and hardwood in equal amounts.
Heating time: 1–2 hours in summer, 2–3 hours in winter.
Heater rated heating output: 35 kW.

Safety Warning: Children must be supervised by an adult at all times when using a hot tub. Please read and follow all the safety instructions included.

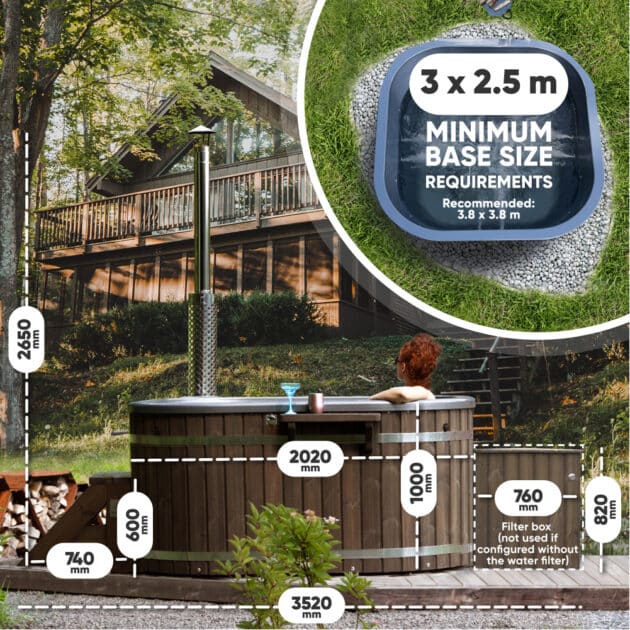

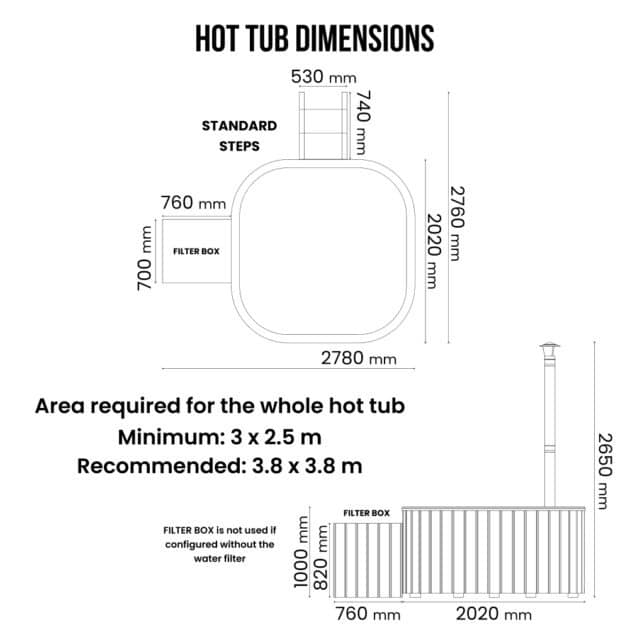

Measurements of the Gardenvity square wood-fired hot tub for 6 people

Minimal and recommended base size for the Gardenvity square wood-fired hot tub for 6 people

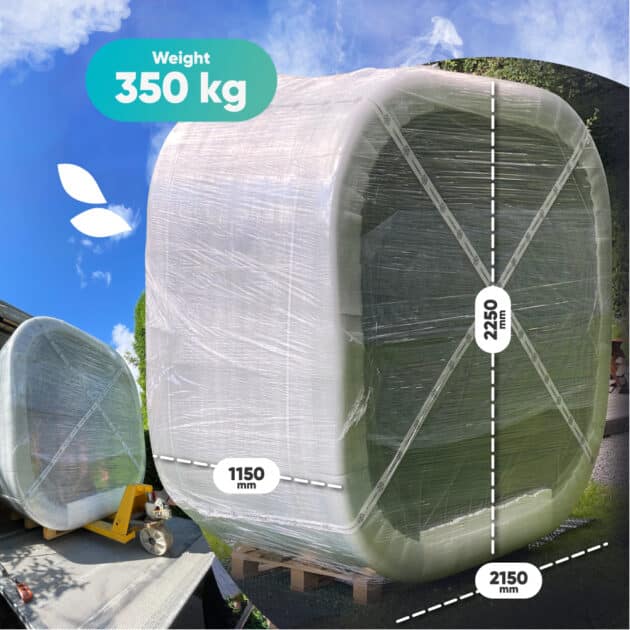

Weight and measurements of a packed Gardenvity square wood-fired hot tub for 6 people

Moving the Gardenvity square wood-fired hot tub with a pallet truck
